BeiDian Electric · YB-12 Series

YB-12 Pre-installed Box-type Substation

Everything in one cabinet — transformer, high-voltage switchgear and low-voltage distribution pre-assembled at the factory. Install in days, not months.

Get a Quote Contact Us

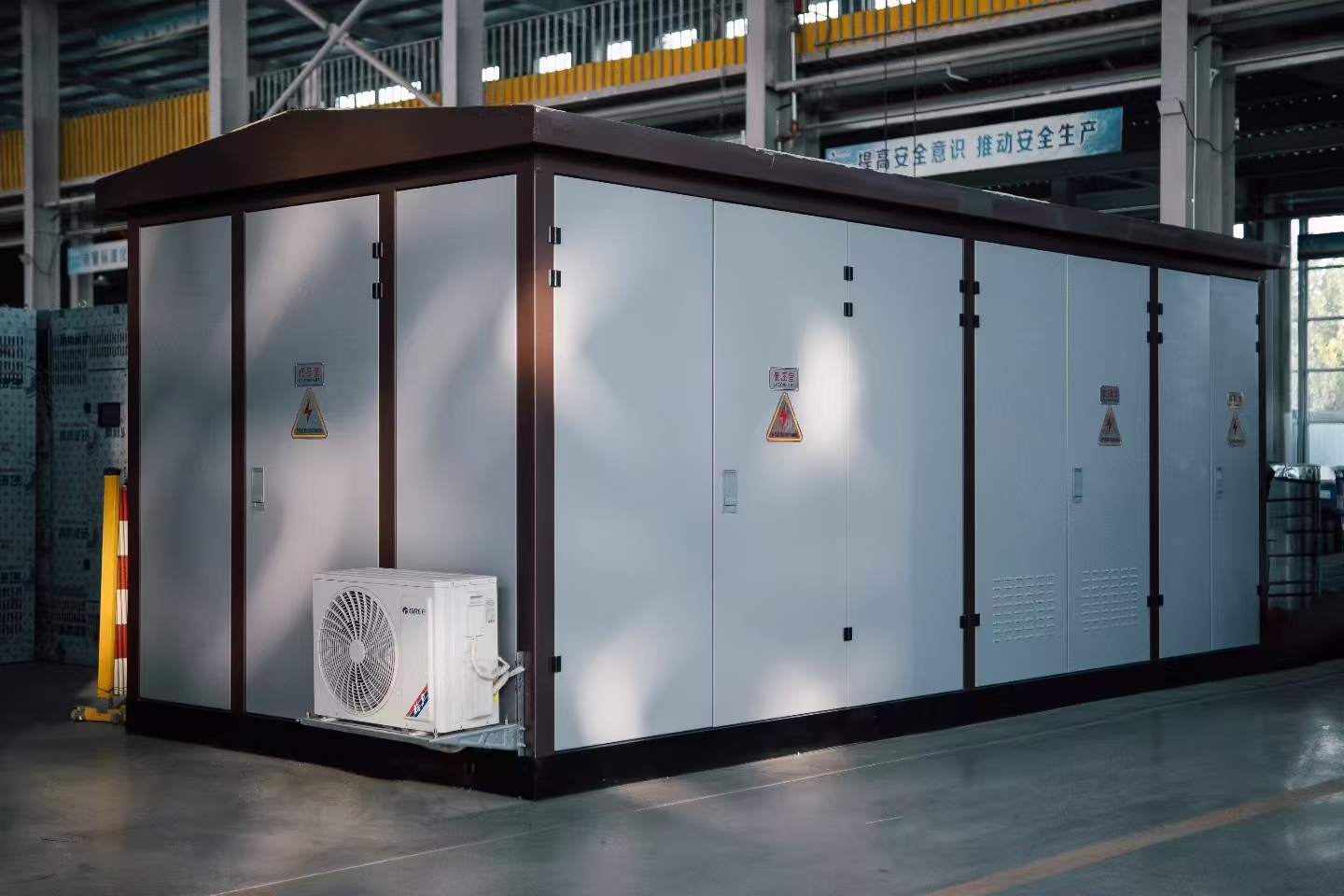

Pre-installed Box-type Substation - YB-12 Series by BeiDian Electric
10kV Class

Technical Specifications

Voltage Class 6kV – 10kV – 35kV
Capacity Range 100kVA – 2500kVA
Frequency 50Hz / 60Hz
HV Switchgear Load break switch / Ring main unit
LV Switchgear ACB / MCCB distribution
Protection Class IP33 / IP44
Standard GB/T 17467 (IEC 62271-202)
Installation Outdoor / Indoor
Key Features

Why Choose This Product

YB-12 Series delivers dependable performance backed by manufacturing under a quality management system aligned with ISO 9001 and 100% factory testing.

01

Compact structure, small footprint

Integrated transformer + HV + LV switchgear in one cabinet saves valuable space at urban sites.

02

Fast installation, plug and play

Factory pre-assembled and tested — install and commission in days instead of months of on-site work.

03

Low noise, low loss, energy saving

Low-noise, low-loss design suits residential areas while reducing long-term energy cost.

04

Anti-corrosion enclosure for harsh environment

IP33/IP44 anti-corrosion enclosure protects internals against weather, dust and coastal air.

05

Complete protection and monitoring system

Full protection and monitoring ensure safe unattended operation for distribution networks.

Applications

Typical Applications

▸Urban power distribution networks
▸Residential communities and commercial areas
▸Construction sites and temporary power
▸Industrial parks
▸Rural electrification projects

Need a Quote or Custom Design?

Send us your requirements — our engineers respond within 24 hours with specifications and factory price.

WhatsApp Us Now
✉ sales@beidian-electric.com ☎ +86 537 8852789 WhatsApp: +86 136 6638 8969
Related Products

You May Also Need

Oil-immersed Distribution Transformer
S11 Series

Oil-immersed Distribution Transformer

High-efficiency oil-immersed distribution transformer with low no-load loss, suitable for ...

View Details →

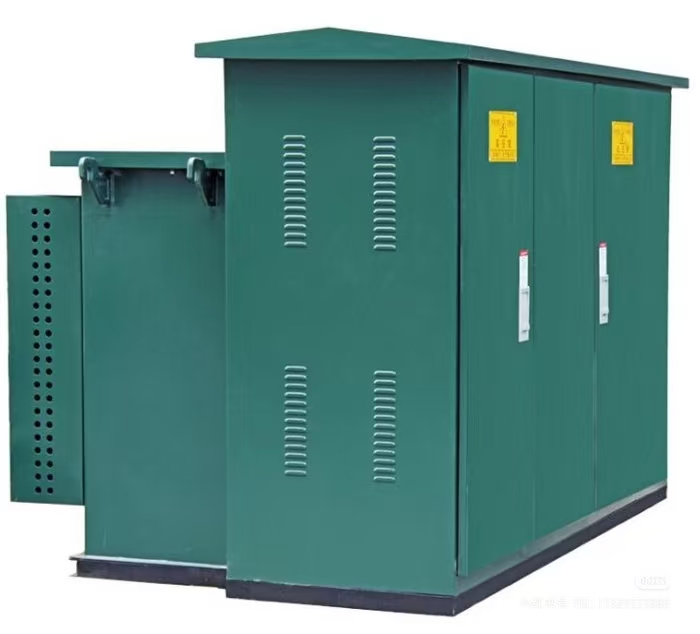

American-style Box Transformer
