BeiDian Electric · S11 Series

S11 Oil-immersed Distribution Transformer

The S11 series is our best-selling distribution transformer — a full-sealed, low-loss design trusted by utilities and contractors for daily power distribution duty.

Get a Quote Contact Us
Oil-immersed Distribution Transformer - S11 Series by BeiDian Electric
10kV Class

Technical Specifications

Voltage Class 6kV – 10kV – 15kV
Capacity Range 30kVA – 2500kVA
Frequency 50Hz / 60Hz
Vector Group Dyn11 / Yyn0
Insulation Level LI75 AC35 / LI95 AC42
Cooling Method ONAN / ONAF
Standard IEC 60076, GB 1094.1
No-load Loss S11 / S13 / S15 Grade
Key Features

Why Choose This Product

S11 Series delivers dependable performance backed by manufacturing under a quality management system aligned with ISO 9001 and 100% factory testing.

01

High-quality cold-rolled silicon steel sheet core

Low-loss, high-permeability silicon steel core holds no-load loss to S11/S13/S15 grade, cutting long-term operating cost.

02

Full-sealed corrugated oil tank, no oil conservator

Hermetically sealed corrugated tank keeps insulating oil free of moisture and oxygen, extending insulation life with no oil maintenance.

03

Low noise level (≤55dB)

Quiet operation below 55 dB makes it ideal for urban and residential installations near living areas.

04

Strong overload capacity and short-circuit resistance

Robust winding and core clamping withstand overload and short-circuit stress, meeting IEC 60076 fault-duty requirements.

05

Service life ≥ 30 years

Full-sealed design and quality materials deliver a proven service life of 30 years or more.

Applications

Typical Applications

▸Urban and rural power distribution networks
▸Rural electrification projects across Africa
▸Industrial parks and factory power supply
▸Solar and wind power grid connection
▸Mining and agricultural power supply

Need a Quote or Custom Design?

Send us your requirements — our engineers respond within 24 hours with specifications and factory price.

Call Us Now
✉ sales@beidian-electric.com ☎ +86 537 8852789
Related Products

You May Also Need

High-efficiency Power Transformer
S22 Series

High-efficiency Power Transformer

Medium power transformer for substation applications with advanced core design and enhance...

View Details →

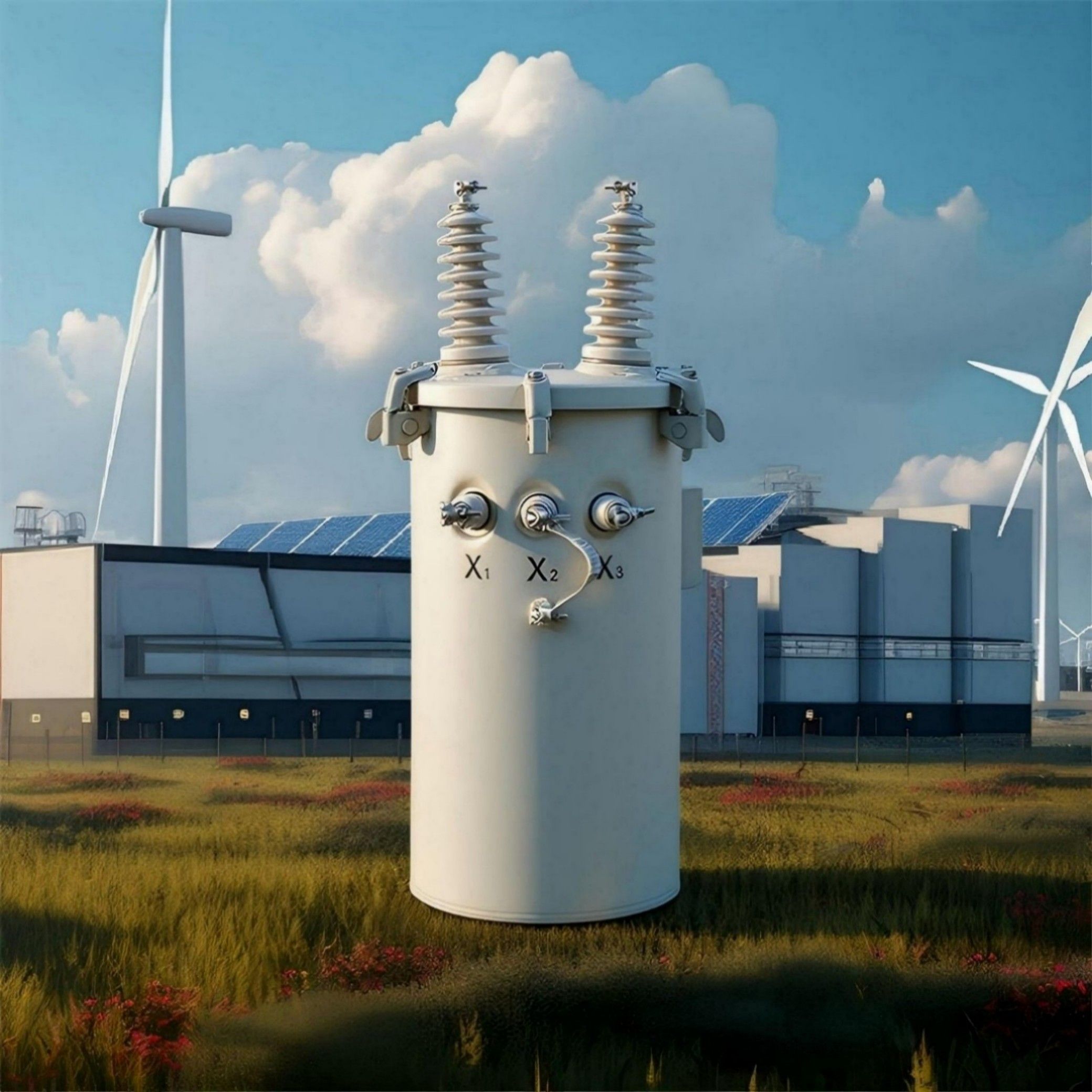

Single-phase Distribution Transformer
D11 Series

Single-phase Distribution Transformer

Compact single-phase oil-immersed transformer designed for pole-mounted installation in ru...

View Details →

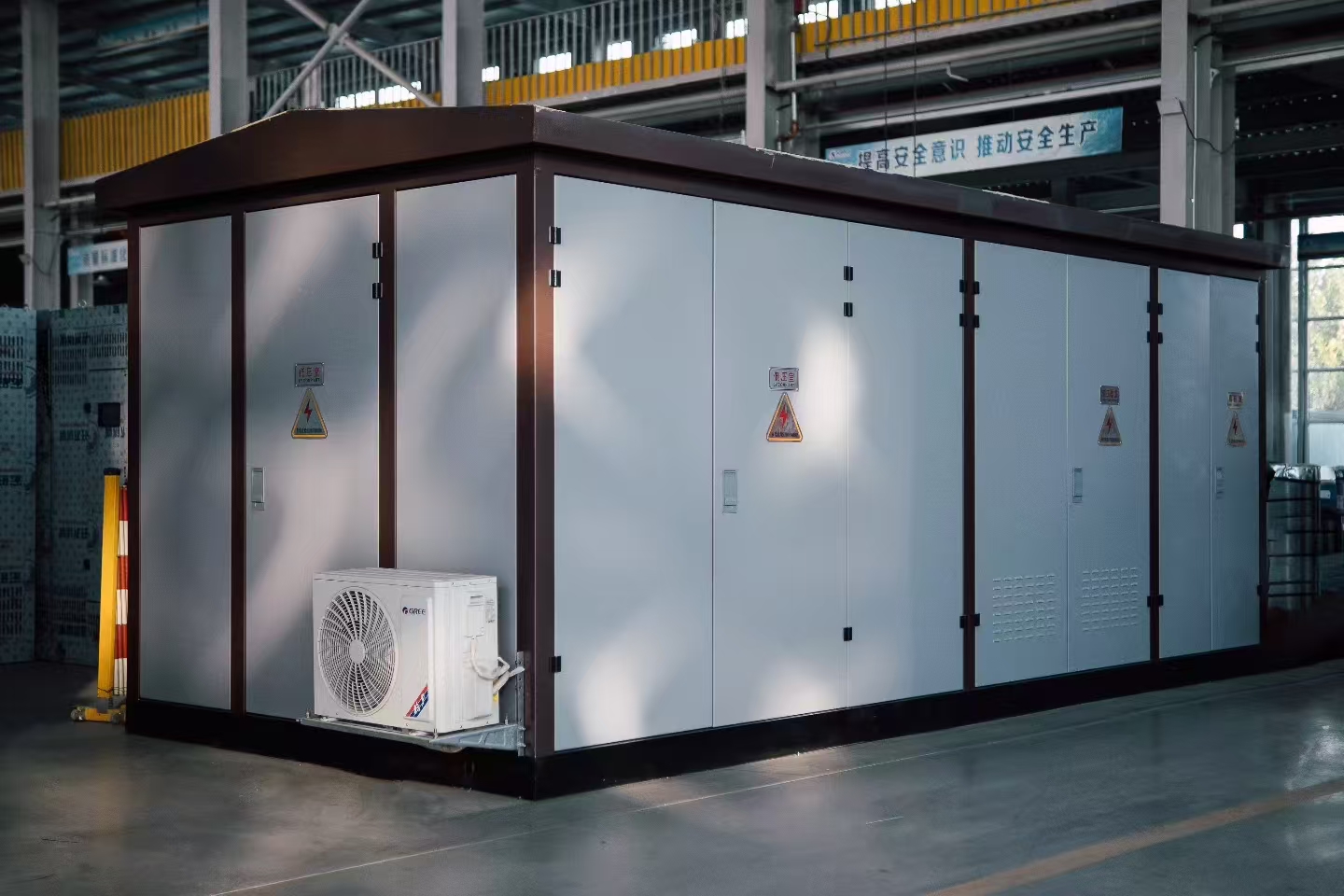

Pre-installed Box-type Substation
