MNS Low Voltage Draw-out Switchgear

Name: Low Voltage Draw-out Switchgear (MNS Series)
Brand: BeiDian Electric
Availability: InStock

Modular, draw-out low voltage switchgear for demanding distribution and motor control applications — rated up to 6300A with flexible configuration.

Get a Quote Contact Us

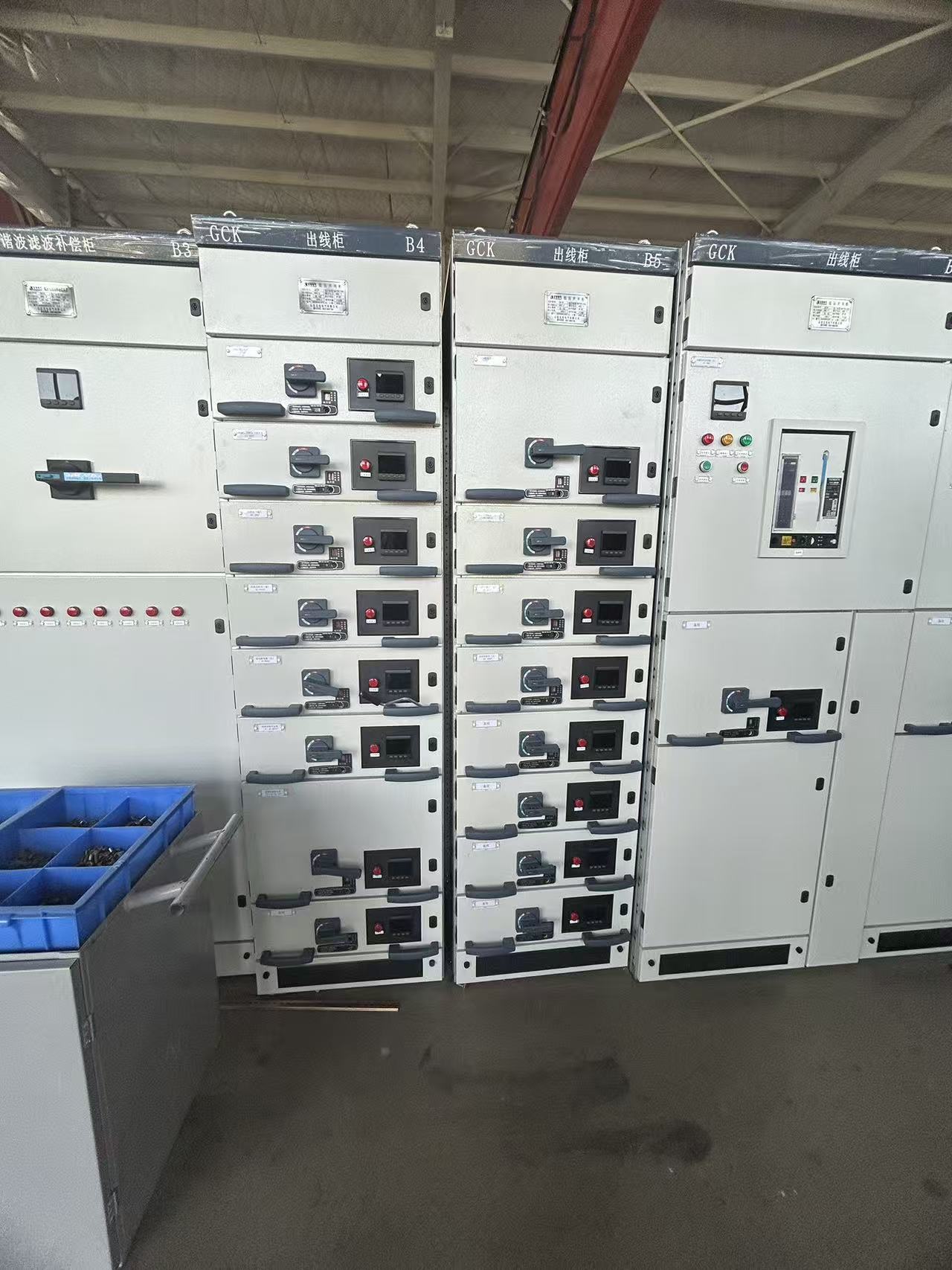

Low Voltage Draw-out Switchgear - MNS Series by BeiDian Electric

LV Switchgear

Technical Specifications

Rated Voltage 400V – 690V

Rated Current Up to 6300A

Rated Frequency 50Hz / 60Hz

Short-circuit Capacity 50kA – 100kA

Protection Class IP30 – IP54

Standard GB 7251, IEC 61439

Structure Draw-out / Fixed

Installation Indoor

Key Features

Why Choose This Product

MNS Series delivers dependable performance backed by manufacturing under a quality management system aligned with ISO 9001 and 100% factory testing.

Modular draw-out design

Modular draw-out units allow rapid maintenance and reconfiguration without downtime.

High breaking capacity

Short-circuit capacity up to 100 kA protects downstream equipment under severe faults.

Flexible combination

Flexible configuration supports distribution, motor control and reactive power compensation in one system.

Complete protection functions

Comprehensive protection and metering ensure safe, efficient low-voltage distribution.

Easy maintenance and expansion

Standardized modules simplify future expansion and reduce lifecycle cost.

Applications

Typical Applications

▸Industrial power distribution

▸Motor control centers

▸Reactive power compensation

▸Commercial building power systems

▸Power plant auxiliary power
